Markets

When the number of industries that we serve increases, so does our pride. What began as a family business has grown into a worldwide force in tubing and pipe.


When the number of industries that we serve increases, so does our pride. What began as a family business has grown into a worldwide force in tubing and pipe.

RathGibson Markets

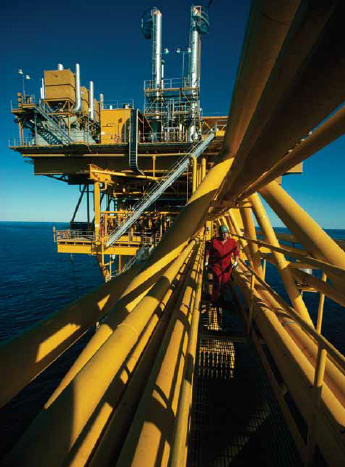

Oil & Gas

When you are involved in the large number of downhole and umbilical projects that RathGibson is, you learn quite a few things.

You learn to manufacture and supply stainless steel and nickel straight lengths and coil tubing that is as integral as it is cost effective. You learn to ensure quality by employing multiple non-destructive testing techniques. You learn to develop process plans specifically for downhole and umbilical customers.

When you choose RathGibson as your tubing supplier, you know that we really understand the Oil and Gas industry. Make the connection to RathGibson today.


Downhole Applications

  • Control Lines
  • Chemical Injection Lines
  • Hydraulic Lines
  • Capillary Tubing
  • Electrical Lines
  • Tubing Encapsulated Conductor
  • Intelligent Well Completions
  • Multi-Line Flat Packs

Downhole Material Options


Umbilical Applications

  • Control Lines
  • Flying Leads
  • Electrical Lines
  • Chemical Injection Lines
  • Hydraulic Lines
  • Lean Duplex Alloys

Umbilical Material Options

Austenitic & Nickel Tubing Maximum Coil Lengths


LEARN MORE

LITERATURE DOWNLOADS

Umbilical/Downhole Line Card

Power Generation

Serving the power generation industry, only RathGibson combines technical expertise and experience to produce the finest tubing and pipe available today. When you select the best, you get the best. Do as countless other companies have done—rely on RathGibson. Demanding industries demand RathGibson.


Applications

  • Heat Exchangers
  • Steam Condensers
  • Feedwater Heaters
  • U-Bend Applications
  • Geothermal
  • Desalination
  • Instrumentation
  • Pressure Coils
  • Steel Boilers
  • Super Heaters
  • Low pressure, fully annealed applications

Chemical/Petrochemical

Serving the Chemical/Petrochemical Industry, only RathGibson combines technical expertise and experience to produce the finest tubing and pipe available today. When you select the best, you get the best. Do as countless other companies have done — rely on RathGibson. Demanding industries demand RathGibson.


Applications

  • Heat Exchangers
  • Steam Condensers
  • Desalination
  • Geothermal
  • Feedwater Heaters
  • Instrumentation
  • Pressure Coils
  • Steel Boilers
  • Super Heaters
  • Low pressure, fully annealed applications

Food, Beverage and Dairy

Sometimes good ingredients come with bad filler. When your products flow through RathGibson tubing and pipe, the bad things are no more. That’s because RathGibson manufacturers interiors that limit microscopic crevices where pathogens can hide. Increase quality by connecting to RathGibson.


Materials

Finishes

  • 20 µ-in Ra (0.5 µm) ID max. and 30 µ-in Ra (0.8 µm) OD max surface roughness

Packaging

  • Plastic capped and heat-sealed poly sleeves packaged in triple-wall cardboard boxes

Processes

  • Bright annealed
  • Mechanically polished

Specifications

  • 3A and ASTM A270 S2
  • Stock 1/2" (12.7 mm) to 8" (203.2 mm) O.D.
  • 20 ft. (6.1m) lengths

Literature Downloads

Pharmaceutical/Biopharmaceutical

Serving the pharmaceutical and biopharmaceutical industries is a welcomed challenge to RathGibson. From raw materials selection to delivery, we have formulated our high and ultra high purity services to meet and exceed industry standards. When only the finest tubing and pipe will do, more pharma and biopharma companies trust RathGibson. Shouldn't you?

High Purity Tubing


Materials

TP316/TP316L

Specifications

ASME BPE and ASTM A270 S2

Stock

1/2" (12.7 mm) to 6" (152.4 mm) OD, 20 ft. (6.1 m) lengths


Process(es)

100% bore-scoped and mechanically polished

Finishes

20 µ-in Ra (0.5 µm) ID max. and 30 µ-in Ra (0.8 µm) OD max. surface roughness with ends prepared for automatic orbital welding

Packaging

ID cleaning in certified Class 100 cleanroom (Fed 209E) with a 99.9999% pure electronics grade nitrogen purge, plastic capped ends, heat-sealed 6-mil poly sleeves and wood boxes for shipment

Ultra High Purity Tubing


Materials

TP316/TP316L

Stock

1/2" (12.7 mm) to 6" (152.4 mm) OD, 20 ft. (6.1 m) lengths

Process(es)

RathGibson's proprietary electropolishing process to minimize ID surface anomalies for an ultra-smooth, corrosion resistant, chromium enriched surface


Finishes

10 µ-in Ra (0.25 µm) ID max. and 15 µ-in Ra (0.4 µm) ID max

Packaging

ID cleaning in certified Class 100 cleanroom (Fed 209E) with a 99.9999% pure electronics grade nitrogen purge, plastic capped ends, heat-sealed 6-mil poly sleeves and wood boxes for shipment

Literature Downloads

General Commercial

Serving the specialty automotive industry by setting the standards for specialty exhaust applications. RathGibson tubing and pipe are specially formulated to resist tear, corrosion, and thermal oxidation. For consistent performance and unbeatable service, make the connection to RathGibson.


Materials for the Specialty Automotive Industry

Process(es)

Exclusive welding process to ensure weld seam integrity and consistent finish

Packaging

Tubing is typically packaged in hex or square bundles with clear identification on the outside of each bundle. For additional protection, triple wall or wood boxing is available


Specifications

  • A249/SA249
  • A269
  • A312/SA312

Stock

Select sizes from 1/2" (12.7 mm) to 8" (203.2 mm) OD in standard lengths

Custom

Lengths are also available up to 80 ft.

Finishes

Bright Annealed
